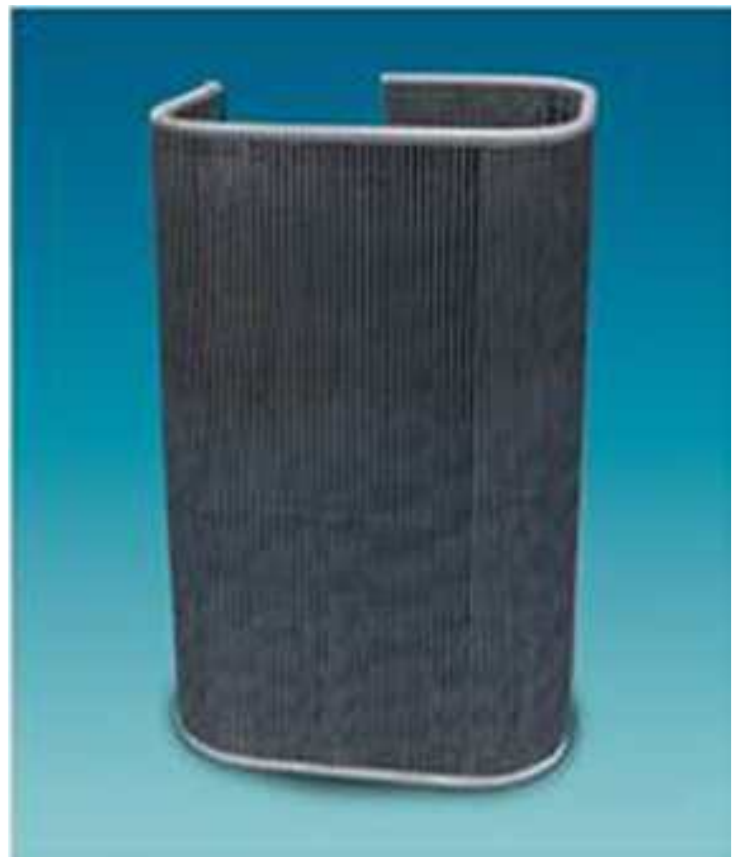

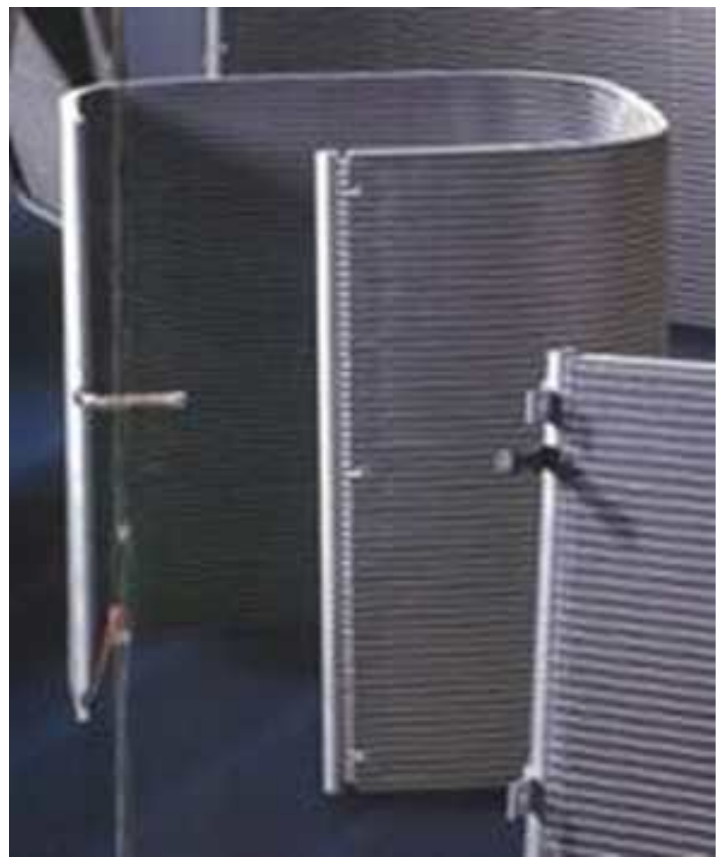

Elastoplastic bending process for air conditioner out door unit heat-exchanger is studied for optimal design through finite element analysis. The effect of various process parameters upon the residual stress, the buckling of header frames and the spring back are analyzed in detail. Then, the orthogonal matrix is utilized to find the optimal values of the process parameters.
유한요소법을 통해 에어컨 실외기 열교환기 구조물의 굽힘 소성 가공 공정의 최적 설계 연구를 수행하였다. 잔류 응력, 좌굴, 스프링 백을 포함한 다양한 인자의 영향을 분석하였다. 인자들의 최적 값을 직교배열표를 이용하여 도출하였다.
